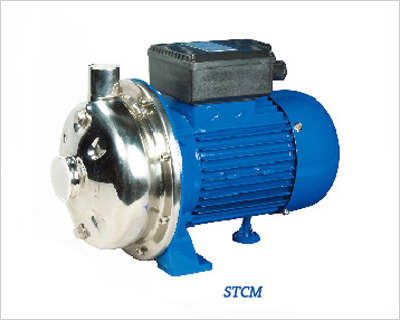

The pump is suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. They have a compact size and are extremely reliable, very simple to use and almost maintenance-free.
The normal power standard is 220V 50Hz single phase.Three phase 220/380V/50Hz, 220/440V/60Hz, Single phase 230V,240V, 127V, 110V,115V/60Hz models are available on request.
1.Pump body: Stainless Steel(AISI304)
2.Impeller: Stainless Steel
3.Motor: Closed,extermally ventilated
4.Insulation class: B(Class F if required)
5.Protection class: IP44/IP54
6.Duty: Continuously rated
7.Mechanical seal: Φ16 ceramic steatite/metalizeb carbon
8.Shaft: Stainless Steel

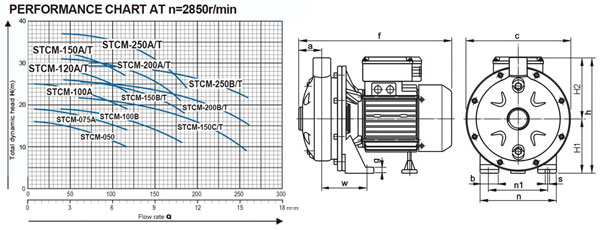

DIMENSIONS
| TYPE |
DIMENSIONS(mm) |
| a |
f |
h |
c |
H1 |
H2 |
n |
n1 |
w |
b |
g |
s |
| STCM-050 |
52 |
302 |
196 |
170 |
88 |
108 |
130 |
100 |
80 |
30 |
9 |
7 |
| STCM-075A |
52 |
302 |
196 |
170 |
88 |
108 |
130 |
100 |
80 |
30 |
9 |
7 |
| STCM-100A |
52 |
315 |
232 |
213 |
108 |
124 |
158 |
120 |
92 |
39 |
9 |
9 |
| STCM-100B |
52 |
315 |
232 |
213 |
108 |
124 |
158 |
120 |
92 |
39 |
9 |
9 |
| STCM-120/T |
52 |
315 |
232 |
213 |
108 |
124 |
158 |
120 |
92 |
39 |
9 |
9 |
| STCM-150A/T |
52 |
386 |
252 |
213 |
108 |
124 |
158 |
120 |
92 |
39 |
11 |
9 |
| STCM-150B/T |
52 |
386 |
252 |
213 |
108 |
124 |
158 |
120 |
92 |
39 |
11 |
9 |
| STCM-150C/T |
52 |
386 |
252 |
213 |
108 |
124 |
158 |
120 |
92 |
39 |
11 |
9 |
| STCM-200A/T |
52 |
386 |
252 |
213 |
108 |
124 |
158 |
120 |
92 |
39 |
11 |
9 |
| STCM-200B/T |
52 |
386 |
252 |
213 |
108 |
124 |
158 |
120 |
92 |
39 |
11 |
9 |
| STCM-250A/T |
52 |
386 |
252 |
213 |
108 |
124 |
158 |
120 |
92 |
39 |
11 |
9 |
| STCM-250B/T |
52 |
386 |
252 |
213 |
108 |
124 |
158 |
120 |
92 |
39 |
11 |
9 |
PERFORMANCE DATE
| TYPE |
Power |
Ampere |
R.P.M |
Q.Max |
H.Max |
S.Head |
Pipe Dia |
L×W×H |
N.W |
| HP |
kW |
1～220V |
3～380V |
(l/min) |
(m) |
(m) |
(mm) |
(kg) |
| STCM-050 |
0.5 |
0.37 |
3.0 |
– |
2850 |
120～10 |
10～16 |
8 |
1-1/4"×1" |
335×230×240 |
8.1 |
| STCM-075A |
0.75 |
0.55 |
3.6 |
– |
120～10 |
14～19 |
8.8 |
| STCM-100A |
1 |
0.75 |
4.5 |
– |
120～10 |
19～25 |
10 |
| STCM-100B |
1 |
0.75 |
4.5 |
– |
180～40 |
11～19 |
10 |
| STCM-120/T |
1.2 |
0.9 |
6.7 |
2.2 |
120～10 |
23～29 |
11 |
| STCM-150A/T |
1.5 |
1.1 |
7.5 |
2.7 |
120～10 |
27～33 |
395×250×260 |
14.6 |
| STCM-150B/T |
1.5 |
1.1 |
7.5 |
2.7 |
180～40 |
18～26 |
14.6 |
| STCM-150C/T |
1.5 |
1.1 |
7.5 |
2.7 |
260～60 |
9～21.5 |
1-1/2"×1" |
14.6 |
| STCM-200A/T |
2 |
1.5 |
9.6 |
3.5 |
180～40 |
21～31 |
1-1/4"×1" |
15 |
| STCM-200B/T |
2 |
1.5 |
9.6 |
3.5 |
260～60 |
15～25.5 |
1-1/2"×1" |
15.8 |
| STCM-250A/T |
2.5 |
1.85 |
11 |
4.3 |
180～40 |
25～37 |
1-1/4"×1" |
16 |
| STCM-250B/T |
2.5 |
1.85 |
11 |
4.3 |
260～60 |
21～28.5 |
1-1/2"×1" |
17 |
|
