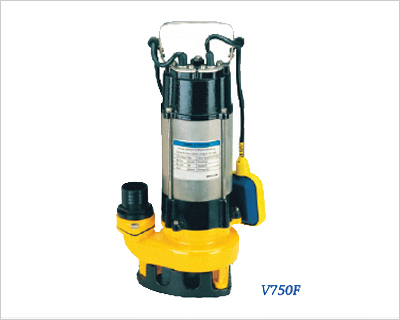

| CONDITION FO USAGE： 1.The maximum deep it is allowed in water is 5m from its center of impeller; 2.The trans medium’s temperature shouldn’t be higher than 40℃; 3.The trans medium’s PH scope is from 4～10; 4.The kinematics viscosity of the trans medium is 7×10-7～23×10-6 m2/s; 5.The maximum density of the trans medium is 1.2×103 kg/ m3. FUNCTION AND FEATURE： This advanced V series, a branch of single-phase and three-phase drainage pumps, will be your ideal drainage helper. It can work safely and efficiently at high flux with the feature of complete heads. The design is designed to a wide tunnel which helps to convey the long fiberliquid or the solid whose diameter is about 15mm or 25mm. The selection of bottom suction structure, stainless steel and special cast iron made the pump has the capabilities of complete drain and high resistance of abrasion and corrosion. The float switch can automatically control on and off with the change of the liquor level. The protector in the motor can automatically cut off the power when it overheated or overcurrented, thus guarantee the security and reliability of pump’s operation even in the atrocious environment. PERFORMANCE DATE
|
