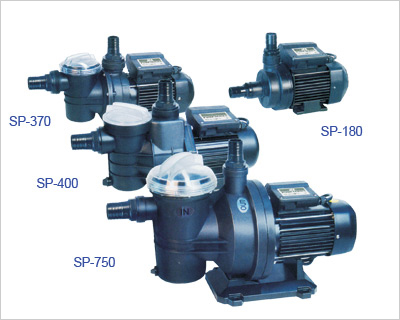

FUNCTION AND CHARACTERISTICS
The pump acts the high strength industry fiber pastis as pump corpus, arranging the accurate mechanical type axis seal and high-quality
stainless steel pump axis
The seal performance of the seal is good, single phase electric motor apparatus overcapacity open circuit system, can long hours
continuously work.Main material and installation structure of each part of pump series are based on the meticulous care bolting and perfect
design, have big run off, bear decay, waterproof flow bombardment, low noise and so on characteristics, it's shape exquisite beautiful, the
installation is simple, and can add the additional splicing enzyme fitting
LIMIT FOR THE USE
1、Seafood marine products farming the salt water and the fresh water cyclic transformation and transmissibility
2、The cyclic transformation pump water of Hotel and refectory, work mine enterprise joint catchment
3、The water cyclic transformation of the garden, the swimming pool and the mulberry
OPERATING LIMITS
1、Fluid temperature up to +35 ℃
2、Maximum ambient temperature +40 ℃
WARRANTY: ONE YEAR(according to our general sales conditions)
|

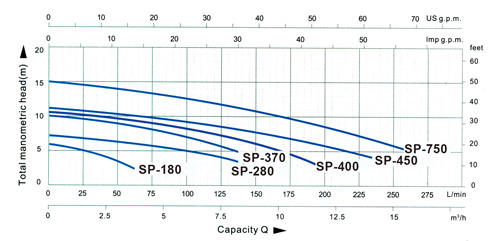

MODEL
|
POWER
|
INLET/OUTLET
|
MAX.FLOW
|
MAX.HEAD
|
G.W
|
PACKING DIMENSION
|
QTY
|
|
Single phase
|
(KW)
|
(HP)
|
(L/min)
|
(m)
|
(kg)
|
(mm)
|
(set)
|
|
SP-180
|
0.18
|
0.25
|
1"X1"
|
60
|
6
|
4
|
300X150X185
|
2600
|
|
SP-280
|
0.28
|
0.37
|
11/2"X11/2"
|
140
|
7
|
5.3
|
330X180X185
|
2100
|
|
SP-370
|
0.37
|
0.5
|
11/2"X11/2"
|
150
|
10
|
6.5
|
430X180X185
|
1800
|
|
SP-400
|
0.4
|
0.55
|
11/2"X11/2"
|
190
|
10
|
7
|
430X180X230
|
1400
|
|
SP-450
|
0.45
|
0.6
|
11/2"X11/2"
|
230
|
11
|
10.3
|
540X260X350
|
550
|
|
SP-750
|
0.75
|
1
|
11/2"X11/2"
|
260
|
15
|
11.5
|
540X260X350
|
550
|
|
